HTP-072 - Basic Playback

Here are the basic instructions for playing a source (such as a Blu-ray Disc) with your home theater system.

The following buttons are not used with this receiver:

– Acous.EQ, SB CH

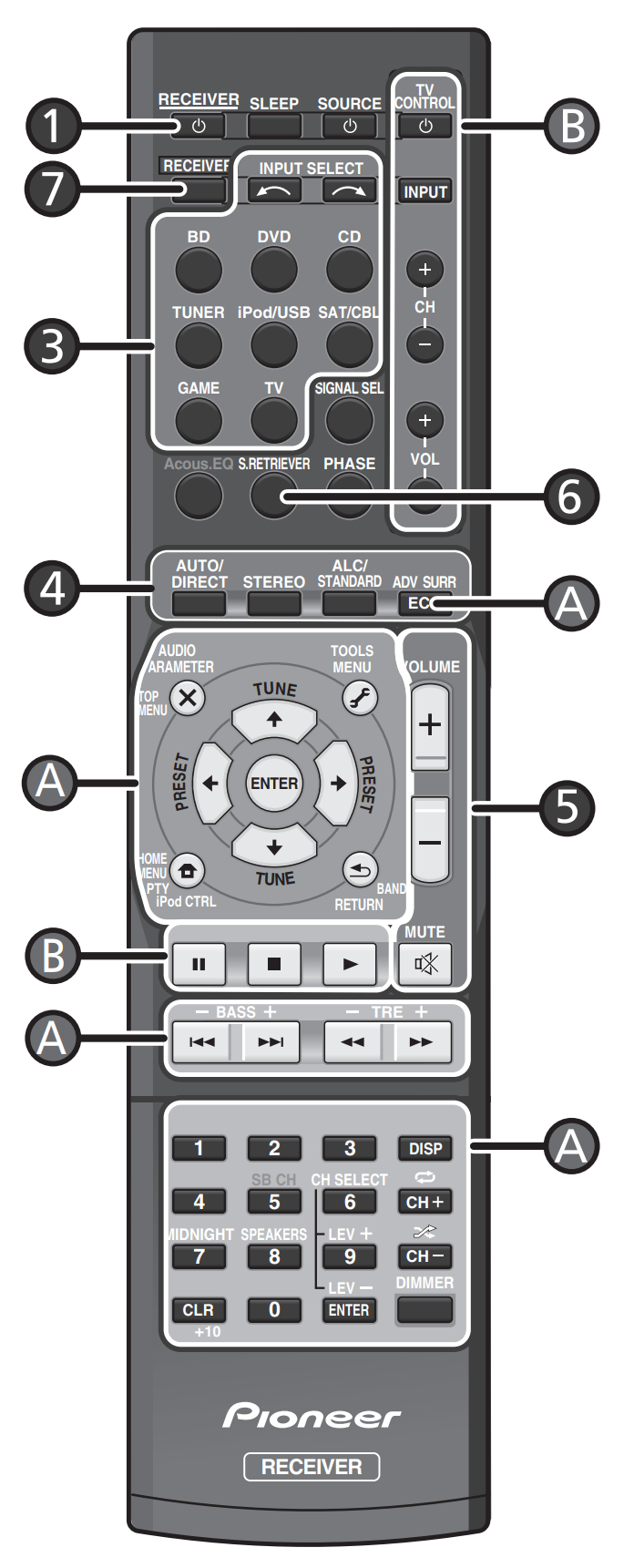

1. Switch on your system components and receiver.

   Start by switching on the playback component (for example a Blu-ray Disc player), your TV, then the receiver (press RECEIVER).
2. Switch the TV input to the input that connects this receiver.
   For example, if you connected this receiver to the VIDEO jacks on your TV, make sure that the VIDEO input is now selected.
3. Press input function buttons to select the input function you want to play.
   • The input of the receiver will switch over, and you will be able to operate other components using the remote control.
   • The input source can also be selected by using INPUT SELECT buttons on the remote control, or by using the front panel INPUT SELECTOR dial. In this case, the remote control won’t switch operational modes.
   • Press SIGNAL SEL to select the audio input signal corresponding to the source component (HDMI, digital or analog).
4. Press AUTO/DIRECT to select ’AUTO SURROUND’ and start playback of the source.
   If you’re playing a Dolby Digital or DTS surround sound Blu-ray/DVD disc, with a digital audio connection, you should hear surround sound. If you’re playing a stereo source or if the connection is an analog audio connection, you will only hear sound from the front left/right speakers in the default listening mode.

   Listening in Standard surround sound
   This receiver provide basic surround sound for stereo and multichannel sources.

   -While listening to a source, press ALC/STANDARD repeatedly to select a listening mode.

   Listening in Advanced surround sound
   The Advanced surround effects can be used for a variety of additional surround sound effects.
   -While listening to a source, press ADV SURR repeatedly to select a listening mode.


5. Use VOLUME +/– to adjust the volume level.
   • Sound can be switched off by pressing MUTE button.



6. Enjoy a variety of sounds.
   Press S.RETRIEVER to switch the Sound Retriever feature ON or OFF.

   • When audio data is removed during the compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.




Other remote control functions

• The input of the receiver will switch over, and you will be able to operate other components using the remote control. To operate the receiver, first press RECEIVER ( 7 ), then press the appropriate button to operate.
• Use the "A" buttons to adjust the settings of this receiver and operate other devices.
• Use the "B" buttons to operate TV. Operations are still possible even after pressing the RECEIVER
  button.
