PL-990 - Assembly

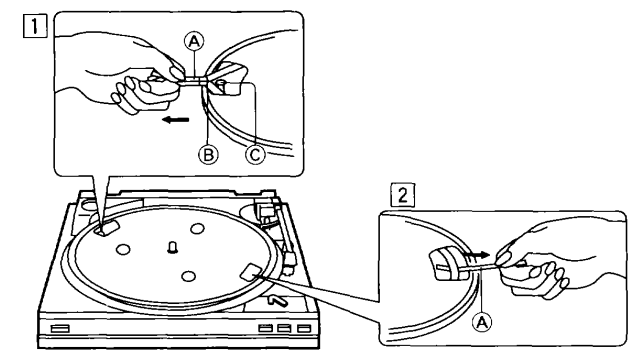

1. Hold the ribbon tape (A) which is attached to the turntable belt (B) and loop the belt over the motor pulley (C).

• Be sure it does not twist.

2. Pull the ribbon tapes (A) out of the turntable belt (B).

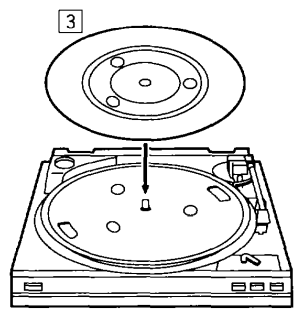

3. Place the mat on top of the platter.

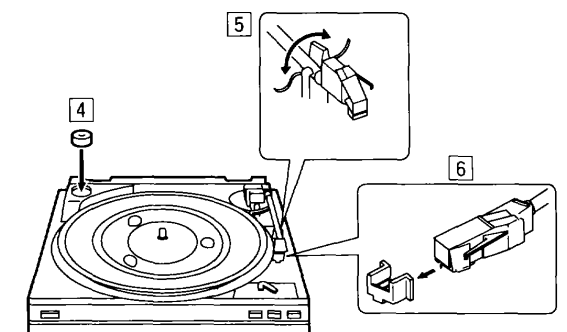

4. Place the EP adapter.

5. Remove the tie securing the tonearm.

6. Remove the stylus guard.
