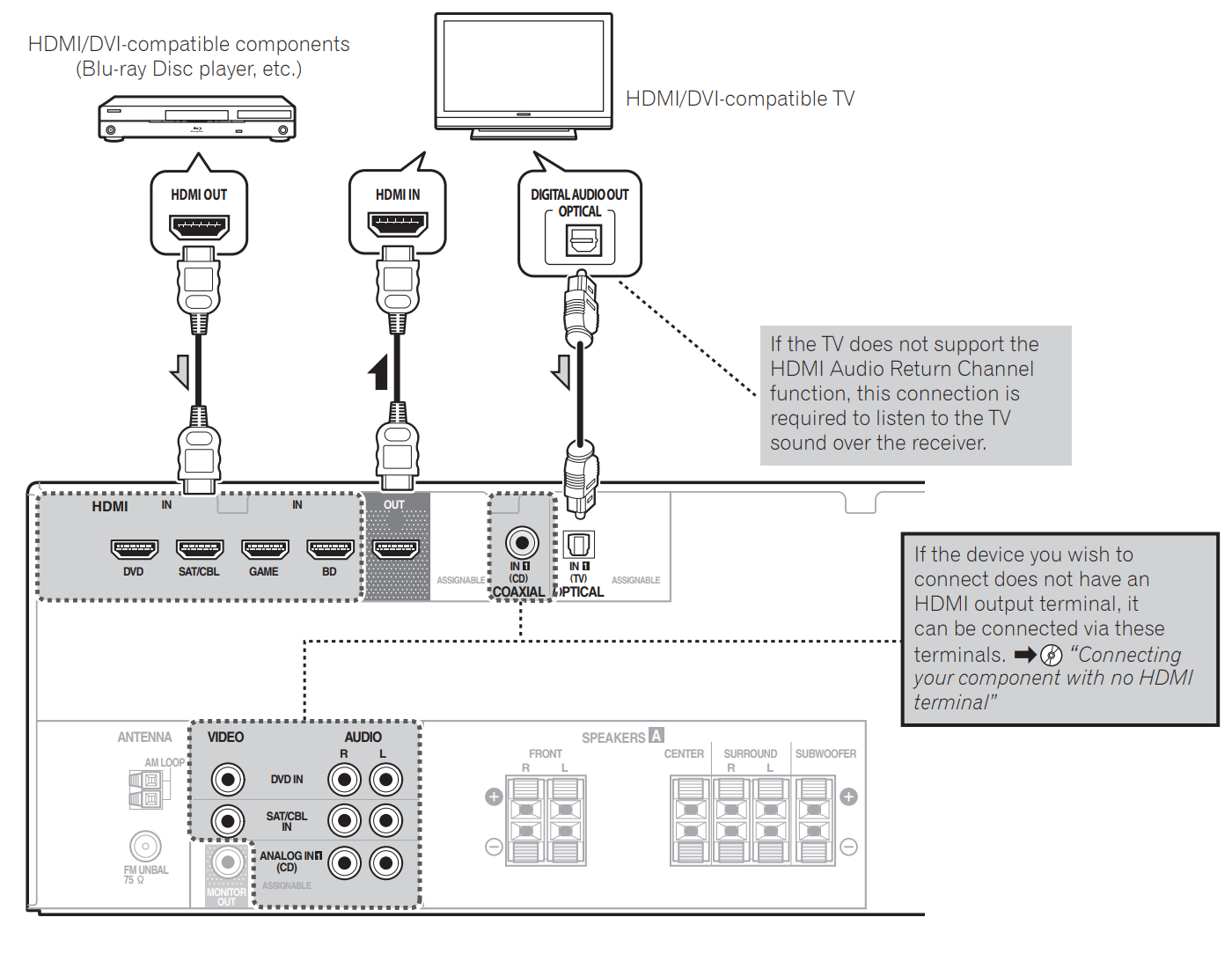

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray Disc player, etc.), you can connect it to this receiver using a commercially available HDMI cable.
- The following connection/setting is required to listen to the sound of the TV over this receiver.
– If the TV does not support the HDMI Audio Return Channel function, connect the receiver and TV with audio cables (as shown).
– If the TV supports the HDMI Audio Return Channel function, the sound of the TV is input to the receiver via the HDMI terminal, so there is no need to connect an audio cable. In this case, set ARC at HDMI Setup to ON.
– The ARC function may not operate even with the above connections. If this is the case, connect the receiver and the TV with an audio cable.
About Video Outputs Connection
This receiver is not loaded with a video converter. When you use HDMI cables for connecting to the
input device, the same cables should be used for connecting to the TV. The signals input from the analog (composite) video input of this unit will not be output from the HDMI OUT.
