HTP-072 - Connecting the Speakers

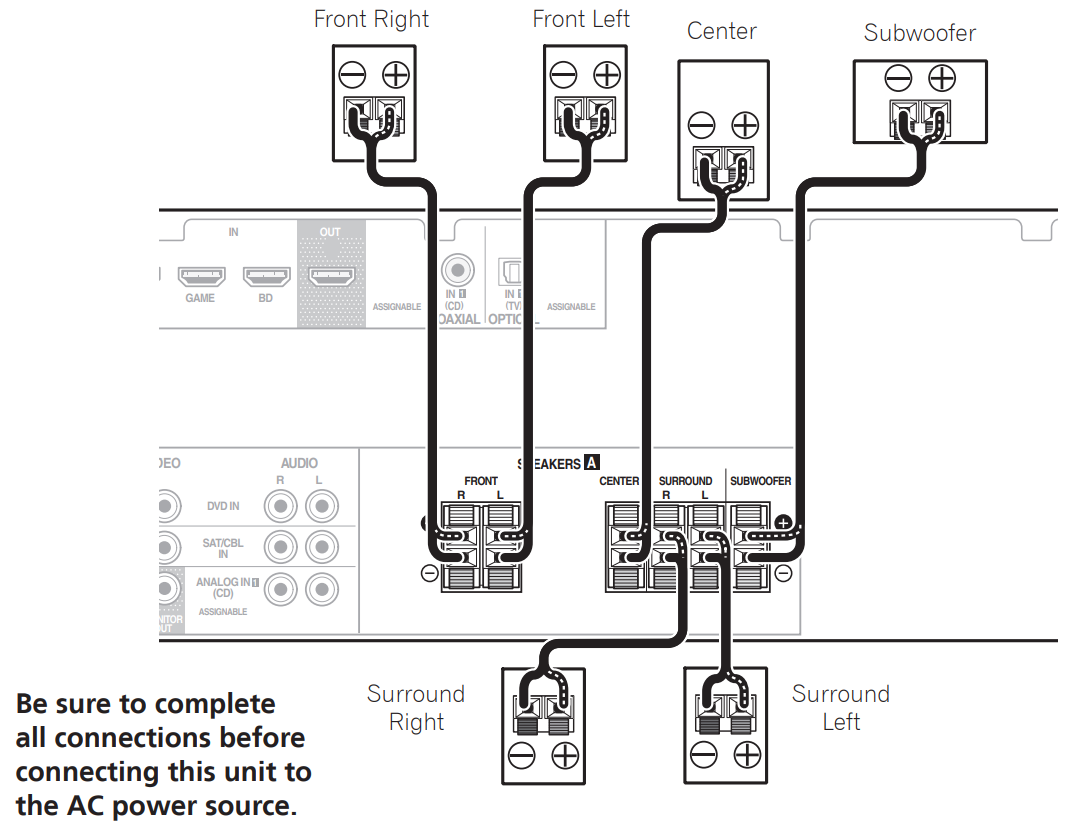

Make sure you connect the speaker on the right to the right (R) terminal and the speaker on the left to the left (L) terminal. Also make sure the positive and negative (+/–) terminals on the receiver match those on the speakers.

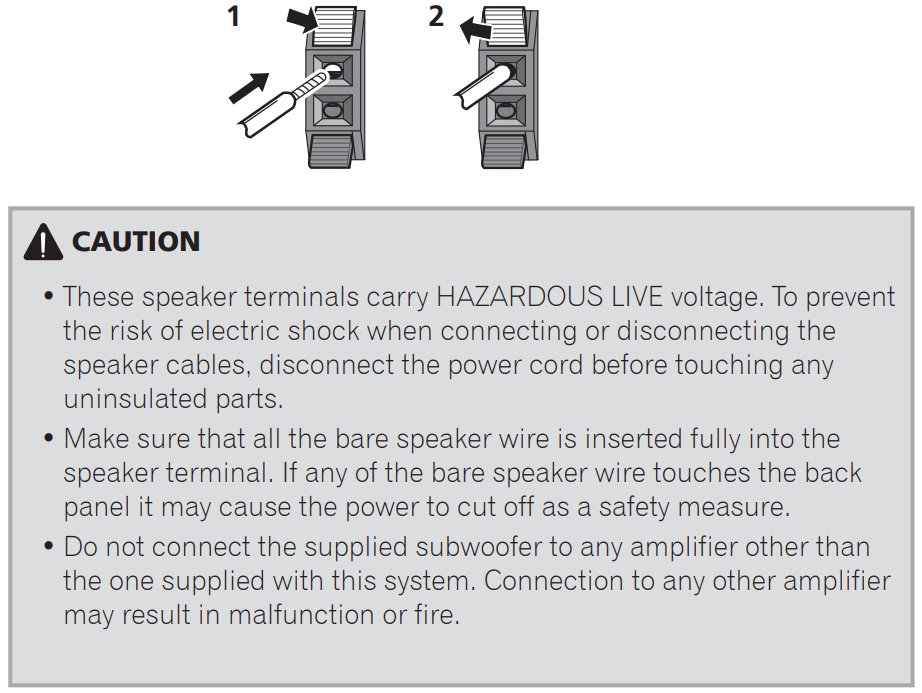

Bare Wire Connections

1. Push open the tabs and insert exposed wire.
2. Release the tabs.
