HTP-072 - Placing the Speakers

The receiver will work with just two stereo speakers (the front speakers in the diagram) but using at least three speakers is recommended, and a complete setup is best for surround sound.

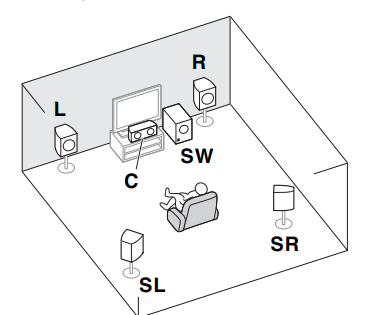

To achieve the best possible surround sound, install your speakers as shown below.

5.1 channel surround system:

• The subwoofer and other speakers in this system cannot be used nearby a CRT-based TV or color
  monitor. When using this kind of CRT-based TV or color monitor, install the speakers away from
  the display device. Any other device liable to be influenced by magnetism (floppy disk drive, cassette tape recorder, video tape player, etc.) should also be kept at a distance from the subwoofer and other speakers.
• Do not attach center speaker and subwoofer to the wall or ceiling, as they may cause injury in the event of a fall.

CAUTION

• Install the center speaker below the TV so that the sound of the center channel is localized at the TV
  screen.
• Do not place the center speaker on top of the TV, the speaker may fall from the TV due to external
  shocks such as earthquakes, endangering those nearby or damaging the speaker.
