A-10AE - Speaker Impedance Settings

Depending on the speakers you connect, you may need to change the speaker impedance setting on this unit.

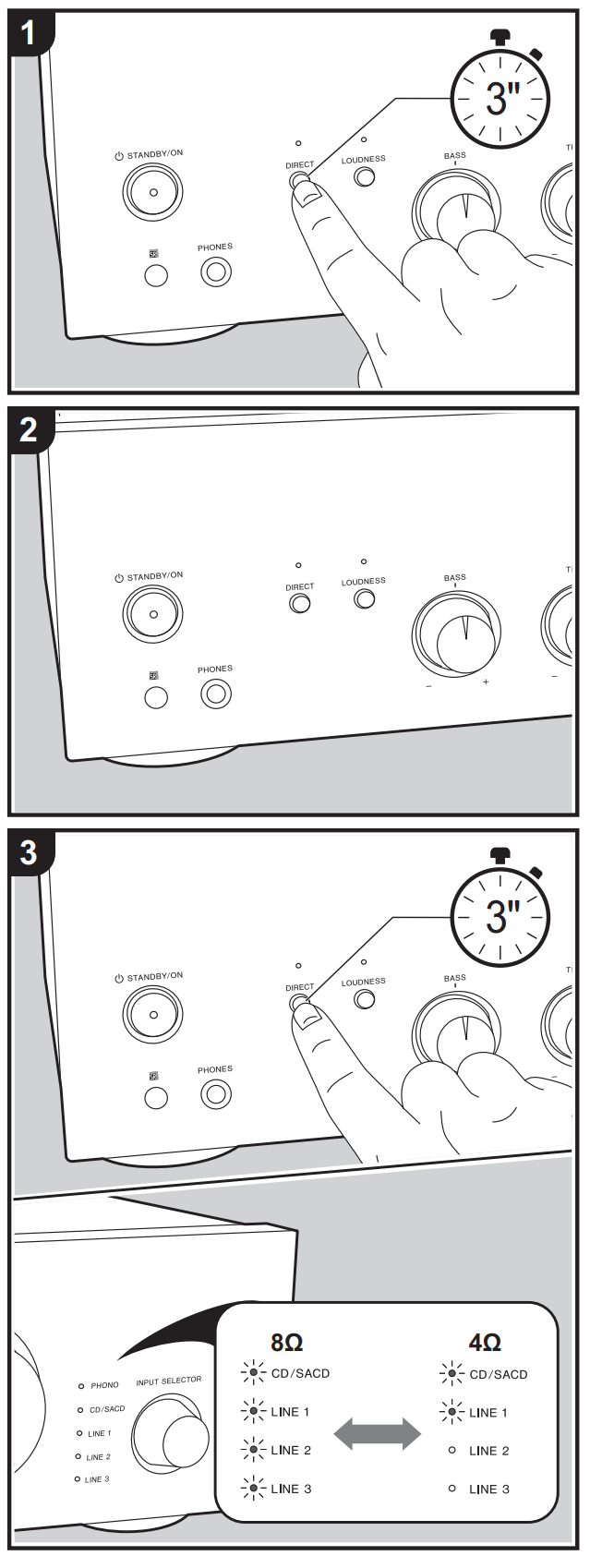

1. Press and hold DIRECT until some indicators, such as the input source indicators "CD/SACD" and "LINE 1", start blinking on the unit.

   The unit has switched to the setting mode when the indicators blink and the current setting is displayed.


2. Take your finger off DIRECT for a moment.
3. Press and hold DIRECT again to change the setting. The following content switches alternately by pressing and holding the button.

   4 ohms: "CD/SACD" and "LINE 1" indicators are blinking
   8 ohms (default value): "CD/SACD", "LINE 1", "LINE 2", and "LINE 3" indicators are blinking

• The setting mode ends after 5 seconds elapse with no operations performed.
