HTP-076 - AV Adjust

You can quickly adjust the settings you frequently use, such as tone adjustments, etc.

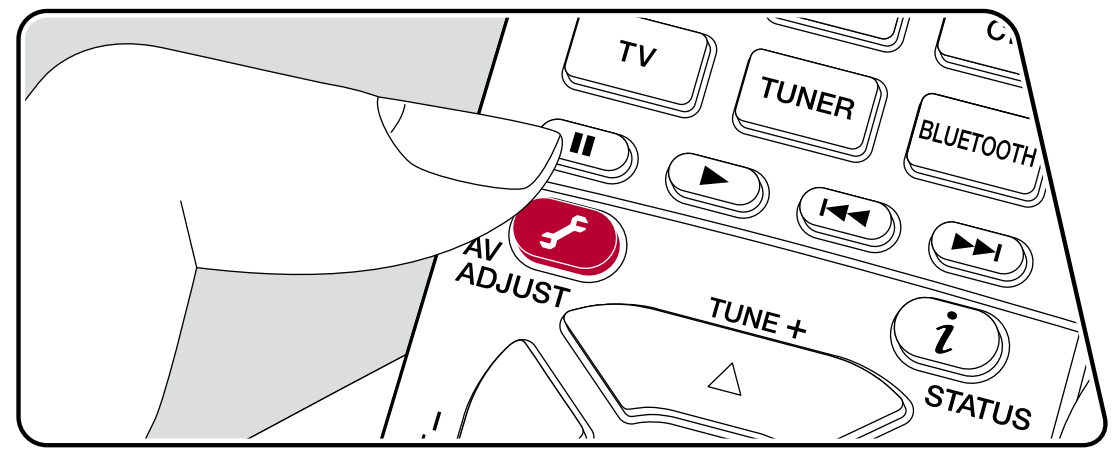

You can make the settings on the TV screen while playing something. Press on the remote controller to display the AV Adjust menu.

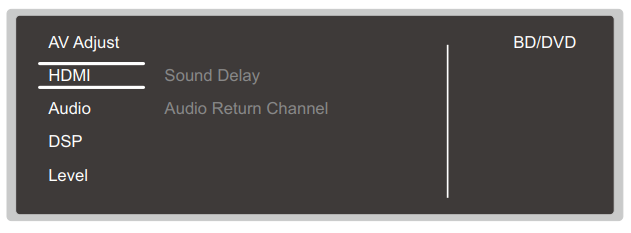

Select the item with the cursor ^/v buttons of the remote controller and press ENTER to confirm your selection.
Use the cursors to change the settings.
• To return to the previous screen, press .
• To exit the settings, press .

HDMI

Sound Delay: If the video is behind the audio, you can delay the audio to offset the gap. Different settings can be set for each input selector.

• This setting is disabled if the listening mode is Pure Direct and the input signal is analog.

Audio Return Channel: You can enjoy the sound of the HDMI-connected ARC compatible TV through the speakers connected to the unit. Select "On" when listening to the audio of TV using the speakers of this unit. Select "Off" when the ARC function is not used.

Audio

Sound Retriever: Improve the quality of the compressed audio. Playback sound of lossy compressed files such as MP3 will be improved. The setting can be separately set to each input selector. The setting is effective in the signals of 48 kHz or less. The setting is not effective in the bitstream signals.

• It cannot be set if the listening mode is Direct or Pure Direct.

Midnight: Make small sounds easily heard. It is useful when you need to reduce the volume while watching a movie late night. You can enjoy the effect only when playing Dolby series and DTS series input signals.

• It cannot be set if the listening mode is Direct or Pure Direct.
• The setting cannot be used in the following cases.
  • If "Loudness Management" is set to "Off" when playing Dolby Digital Plus or Dolby TrueHD
  • When the input signal is DTS:X and "Dialog Control" is other than 0 dB
• If you set the unit to the standby mode, the adjustments you made will be restored to the previous statuses.

DSP

Phase Control: Correct phase disturbance in the low range to enhance the bass.  This enables you to achieve powerful bass reproduction that is faithful to the original sound.

• It cannot be set if the listening mode is Pure Direct.

Theater Filter: Adjust the soundtrack that was processed to enhance its high pitch range, in order to make it suitable for home theater.

• It cannot be set if the listening mode is Direct or Pure Direct.

Level

Front: Adjust the speaker level of the front speaker while listening to the sound.

Center: Adjust the speaker level of the center speaker while listening to the sound.

Subwoofer: Adjust the speaker level of the subwoofer while listening to the sound.

• If you set the unit to the standby mode, the adjustments you made will be restored to the previous statuses.
