PD-10AE - Disc Playback

Ivan
Updated

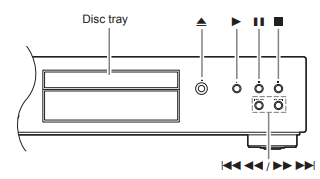

  1. Press the Open/Close mceclip1.pngbutton to open the disc tray.
  2. Place the CD on the tray with the label-side facing up. If you're playing an 8 cm CD, place it in the
    center of the tray.
  3. To start playback, press the Play mceclip2.png button. The disc tray closes and playback starts.

The contents of the disc are displayed when you use the Open/Close mceclip1.png button to load a disc and when you press the Stop mceclip4.pngbutton during playback.
Example displays:

Audio CD


MP3 Discs




Selecting Tracks


To return to the beginning of the track that’s currently playing or paused, press the Previous mceclip8.png button. (Remote controller: mceclip10.png) Press the Previous mceclip11.png button repeatedly to select
earlier tracks. (Remote controller: mceclip10.png)
Press the Next mceclip12.pngbutton repeatedly to select subsequent tracks. (Remote controller: mceclip13.png)

  • To Fast-Forward or Fast-Reverse
    During playback or while playback is paused, hold down the mceclip12.png button on the CD Player
    to fast-forward or the mceclip11.png button on the CD Player to fast-reverse.
    If you use the remote controller, use the mceclip14.png buttons. On MP3 CDs, fast-reverse only works within the MP3 file that’s currently playing.
  • To Pause Playback Press the Pause mceclip15.png button. The Pause mceclip16.png indicator appears. To resume playback, press the Play mceclip17.png or Pause mceclip15.pngbutton again.
  • To Stop Playback Press the Stop mceclip18.png button.
  • To Eject the CD
    Press the Open/Close mceclip19.png button to open the disc tray.

Notes:
- MP3 CDs -
If you press themceclip11.png button during playback or while playback is paused, the beginning of the current file is selected. If you select a file while playback is stopped, press the Playmceclip17.png button to start playback.
You can select MP3 files in other folders by using the mceclip20.pngbuttons.

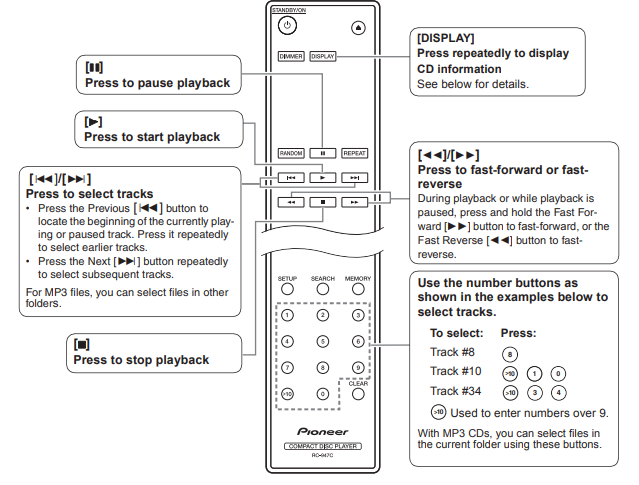

Using the Remote Controller

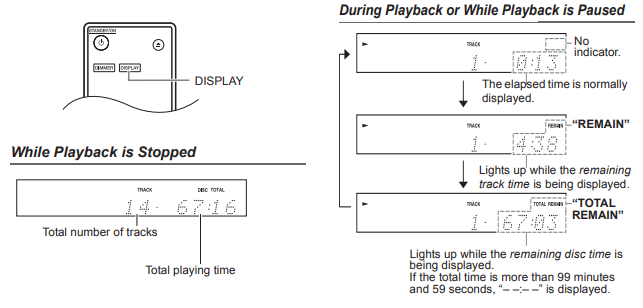

Displaying CD Information

Press the remote controller’s [DISPLAY] button (repeatedly) to show the following CD information.




Selecting Files (MP3 CDs)

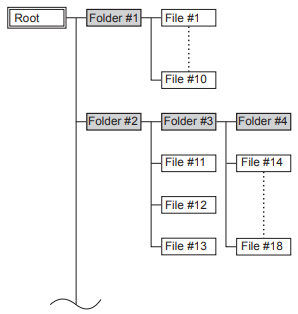

For MP3 CDs, files (MP3 files) may be organized in a hierarchy, with folders containing files and subfolders, as shown below.

  • In this manual, MP3 files are referred to as files. Likewise, folders (directories) are referred to as folders.


If you don’t select a specific MP3 file or folder for playback, all of the MP3 files on the CD will be played in
numerical order starting with file #1.
On this CD Player, there are two modes for selecting files (MP3 files): Navigation mode and All Folder mode. In Navigation mode, you can select files (MP3 files) by navigating through the folder hierarchy, moving in and out of folders and subfolders. In All Folder mode, all folders appear at the same level,
making it easy to select folders regardless of the hierarchy.
While playback is stopped, press the remote controller’s mceclip18.pngor mceclip24.png button to enter Navigation
mode, themceclip16.pngor mceclip25.png button to enter All Folder mode. If you use the CD Player’s button, press the mceclip18.png button to enter Navigation mode, press and hold the mceclip18.png button to enter All Folder mode.
You can change the way in which these buttons change the playback mode. This lets you disable the file selection methods described in Navigation mode or All Folder mode.

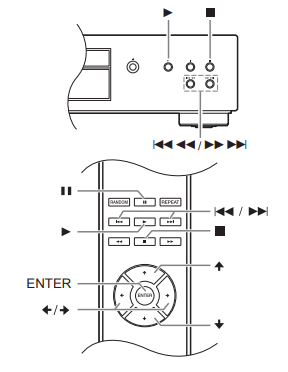

Selecting Files in Navigation Mode

In Navigation mode, you can select files by navigating through the folder hierarchy. This mode can only be used while playback is stopped.


  1. While playback is stopped, press the mceclip25.png or mceclip18.png button. (front panel: mceclip18.png) The compact disc player enters Navigation mode and “[ROOT]” appears on the display.     mceclip28.png
  2. Press the mceclip24.png or [ENTER] button (front panel: mceclip17.png). The first folder name in ROOT appears on the
    display. If the disc contains no folders, the first file name appears.
  3. Use the mceclip29.png or mceclip30.png buttons to select other folders and files at the same level. (front panel: mceclip31.png) To move up a level, press the mceclip25.png or mceclip16.png button (front panel:mceclip18.png). Folders that don’t contain files or subfolders can’t be selected.
  4. Press the [ENTER] or mceclip24.png button to move down a level (front panel: mceclip17.png).
  5. Use themceclip29.png or mceclip30.png buttons to select a file in the folder. (front panel: mceclip31.png).
  6. Press the [ENTER] or mceclip17.png button. Playback will start with the specified file or folder and continue until all of the files on the disc have been played. To cancel the procedure at any point, press the mceclip18.png.

Note:

  • The behavior of the mceclip18.png on the CD Player can be set from “STOP KEY” preference.

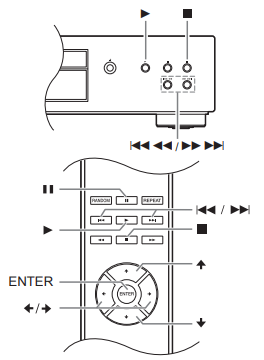

Selecting Files in All Folder Mode

In All Folder mode, you don’t have to navigate the folder hierarchy because all folders that contain files appear at the same level. This mode can only be used while playback is stopped.




  1. While playback is stopped, press the mceclip25.png or mceclip16.png button (front panel: press and hold the mceclip18.png).
    The CD Player enters All Folder mode, and “1- ” appears on the display.mceclip33.png
  2. Use the mceclip29.png or  mceclip30.png buttons to select the other folders. (front panel: mceclip31.png)
    You can select any folder that contains files.
  3. Press the mceclip24.png button (front panel: mceclip17.png). The first file name inside the folder appears. Use the mceclip29.png or mceclip30.png buttons to select the files within the folder. To select another folder, press the mceclip16.pngbutton again (front panel: mceclip18.png), and then use the mceclip30.png buttons to select it (front panel: mceclip31.png).
  4. Press the [ENTER] or mceclip17.png button to start playback. Playback will start with the specified file or folder and continue until all of the file on the disc have been played. To cancel the procedure at any point, press the mceclip18.png.

mceclip18.pngTo Select Folders and Files by Number

  1. Use the number buttons as shown in the examples below to enter folder/file numbers.mceclip34.png
  2. Playback starts. When you enter folder number, playback will start from the first file in the selected
    folder. If a folder contains more than 99 files, single and double-digit file numbers must be preceded by zeros. For example, to specify file #8, press >10, 0, 0, and 8. To specify file #34, press >10, 0, 3, and 4. To specify file #134, press >10, 1, 3, and 4.

Note:

  • The behavior of mceclip18.pngon the CD Player can be set from “STOP KEY” preference.

Selecting a Folder during Playback (Search Mode)


  1. Press the [SEARCH] button. The display blinks.
  2. To select the previous folder, press the Previous mceclip36.png button. To select the next folder, press the Next mceclip38.png button.
  3. Press the [ENTER] button to display the file name, and start playback the selected file.
  4. Use the Previous mceclip39.png and Next mceclip40.png buttons to select the previous or next file, and start playback.

Note:
The [SEARCH] button cannot be used during “Random Playback” or “Memory Playback”.

Displaying MP3 Information


You can display various information about the MP3 file currently playing, including ID3 tags such as title name, artist name, and album name.

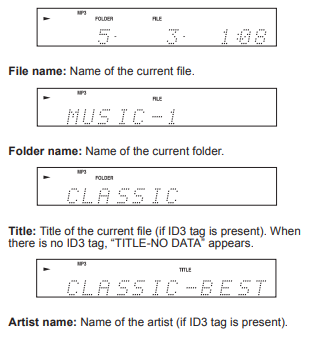

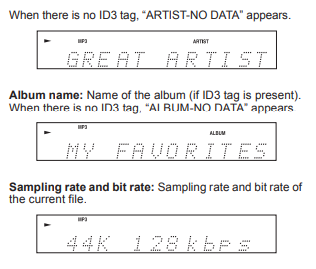

During playback, press the [DISPLAY] button repeatedly to display the following MP3 information.

Elapsed file time: The length of time that the current file has been playing (default display). If the elapsed time is more than 99 minutes and 59 seconds, “– –:– –” is displayed.



Notes:

  • To display the disc name, press the [DISPLAY] button while playback is stopped.
  • If a file or folder name contains any characters that cannot be displayed, an underscore will
    appear in place of those characters. Alternatively, you can set the CD Player so that names
    containing such characters are displayed as “FILE n” or “FOLDER n,” “n” being the file or
    folder number (see “BAD NAME” on page 24).
